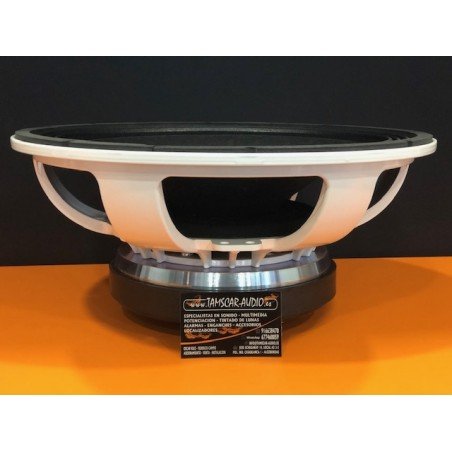

Bat Sound System Bat Bass 15

Caracteristicas:

TECHNICAL
SPECIFICATIONS
Nominal Diameter: 15 inches
Frequency Response: 32 to 3.000 Hz
Nominal Impedance: 4 Ohms
Musical Program Power: 3.600 W
Continuous Maximum Power: 1.800 W
1 , 32 %
Magnetic Flux Density: 7.500 Gaus
Yoke deepness: 15 mm
VOICE COIL:
Wire Material: CCAW
Round
Height: 29 mm
Diameter: 4’’
FRAME AND MAGNET:
Frame Material: Aluminum
Magnet Material: Ferrite
Magnet Dimension: 220 x 25 mm

THIELE/SMALL PARAMETERS
Qts .........................0,36
ηo ...................1,232 %
SPL (1W) ........93,11 dB
SPL (2,83V) ....97,67 dB
Qes ........................0,37
Re ................ 2,8 Ohms
Le ....................3,33 mH
Z ......................4 Ohms
Bl .................. 23,16 Tm
Pe ................... 1.800 W
Fs .................. 45,41 Hz
Qms .................... 18,96
Vas .............. 50,5 Liters
Cms ........... 0,05 mm/N
Mms . . . . . . . . . . . . . . . 248,5 gr
Rms ......... 3,697 Kgr/s
Xmax ................ 7 mm
Xmech ............. 14 mm
P-Dia ............. 330 mm
Sd ............... 843,3 cm 2
P-Vd ........... 0,59 Liters
Vb ...................80 Liters
V(total) ...... 94,84 Liters
Fb ................ 62,35 Hz
F3 ................ 50,83 Hz
Shape ........ rectangular
H ..................... 90 mm
L .................... 390 mm
D ................... 220 mm
