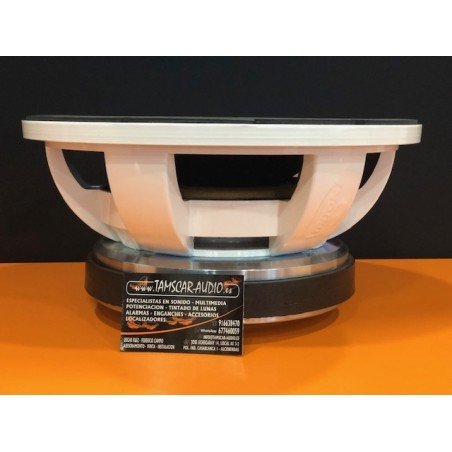

Bat Sound System Bat Fuerte 1650

Caracteristicas:

TECHNICAL
SPECIFICATIONS
Nominal Diameter: 12 inches
Frequency Response: 58 to 4.900 Hz
Nominal Impedance: 4 Ohms
Musical Program Power: 3.300 W
Continuous Maximum Power: 1.650 W
1 , 1 %
Magnetic Flux Density: 16.340 Gaus
Yoke deepness: 13 mm
VOICE COIL:
Wire Material: CCAW
Round
Height: 24,5 mm
Diameter: 4’’
FRAME AND MAGNET:
Frame Material: Aluminum
Magnet Material: Ferrite
Magnet Dimension: 220 x 25 mm

THIELE/SMALL PARAMETERS
Qts .........................0,46
ηo .......................1,1 %
SPL (1W) ..........92,6 dB
SPL (2,83V) ......97,2 dB
Qes ........................0,48
Re ................ 2,8 Ohms
Le ....................1,16 mH
Z ......................4 Ohms
Bl .................. 16,34 Tm
Pe ................... 1.650 W
Fs .................. .69,76 Hz
Qms ...................... 9,99
Vas ..............16,45 Liters
Cms ...........0,048 mm/N
Mms . . . . . . . . . . . . . . . 106,4 gr
Rms ......... 4,758 Kgr/s
Xmax ............ 8,75 mm
Xmech ............. 13 mm
P-Dia ............. .250 mm
Sd ............... 491,2 cm 2
P-Vd ........... 0,43 Liters
Vb ...................35 Liters
V(total) ...... 45,61 Liters
Fb ................ 92,21 Hz
F3 ................ 72,83 Hz
Shape ........ rectangular
H ................... 110 mm
L .................... 290 mm
D ................... 190 mm
