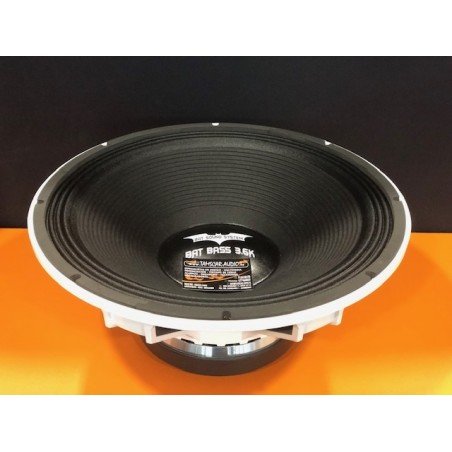

Bat Sound System Bat Bass 18

Caracteristicas:

TECHNICAL
SPECIFICATIONS
Nominal Diameter: 18 inches
Frequency Response: 28 to 1.500 Hz
Nominal Impedance: 4 Ohms
Musical Program Power: 3.600 W
Continuous Maximum Power: 1.800 W
1 , 85 %
Magnetic Flux Density: 6.300 Gaus
Yoke deepness: 15 mm
VOICE COIL:
Wire Material: Copper
Round
Height: 28 mm
Diameter: 4’’
FRAME AND MAGNET:
Frame Material: Aluminum
Magnet Material: Ferrite
Magnet Dimension: 220 x 25 mm

THIELE/SMALL PARAMETERS
Qts ..................... 0,352
ηo ................... 1,85 %
SPL (1W) ........91,15 dB
SPL (2,83V) ....94,88 dB
Qes ........................0,361
Re ................ 3,0 Ohms
Le ....................3,88 mH
Z ......................4 Ohms
Bl .................. 23,66 Tm
Pe ................... 1.800 W
Fs .................. 36,64 Hz
Qms .................... 14,14
Vas .............. 141,93 Liters
Cms ......... 0,064 mm/N
Mms . . . . . . . . . . . . . . . 293,0 gr
Rms ......... 4,771 Kgr/s
Xmax ........... 10,25 mm
Xmech ......... 16,43 mm
P-Dia ............. 400 mm
Sd ............... 1.260 cm 2
P-Vd ........... 1,36 Liters
